2010 TBM 910 SN1247

SOLD!

CLICK HERE TO JUMP TO SPECIFICATIONS

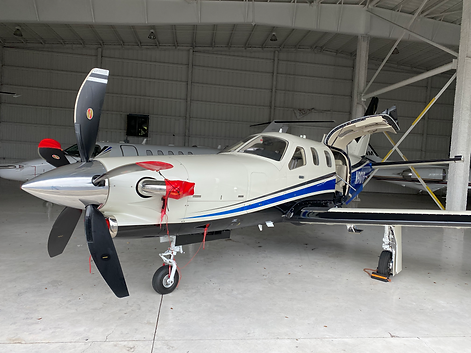

2010 TBM 1247 Exterior
2010 TBM 1247 Interior
2010 TBM 1247 Interior
2010 TBM 1247 Door
2010 TBM 1247 Exterior
Specs

SPECIFICATIONS

ABOUT

  • 2018 TBM 910 SN1247 N910YD
  • Airframe Hours Since New: 685
  • Engine Hours Since New: 685​

INSTRUMENTS & STANDARD AVIONICS

  • Garmin G1000 NXi all-glass integrated flight deck

  • 2 GMA1347D Dual digital audio controller with integrated marker beacon, intercom and public address capability on outer side for pilot and co-pilot, bluetooth capability

  • 2 GDU1050A, 10'' PFD high resolution display with three axis flight dynamics, airspeed, altitude, vertical speed, HSI w/ perspective modes, turn, bank side slip, NAV/COM frequencies indication and AP annunciation

  • 1 GDU1550, high resolution multi-function display with engine (w/ optimum TRQ setting display), pressurization, electrical, fuel, flaps and trims indication, Crew Alerting System (CAS), checklist, aircraft synoptics and super large navigation mapping system.

  • 2 GIA63W, Nav/Com/ILS/WAAS GPS

  • 2 GEA71, Engine and airframe interface unit

  • 2 GRS79, Attitude and Heading Reference System (AHRS)

  • 2 GMU 44 triaxial magnetometer

  • 2 GDC72B, digital air-data computers w/ dual probe system

  • 1 GTX345R Mode S transponder with Extended Squitter (ES)

  • 1 GCU475 remote FMS control panel with analog-feel joystick conveniently located on the central console

  • 1 GMC 710 autopilot mode controller located in upper central panel

  • 4 GSA 81 torque flight servos (yaw, pitch, pitch trim and roll)

  • 1 GTA 82 adapter for yaw auto trim device

  • 1 MD302 Back up Attitude, Airspeed, Altitude digital display, 2 screens instrument

  • GRA 55 Radar Altimeter TAWS-B

  • GTS 820 Traffic Advisory System

  • WX 500 Stormscope

  • Crew Alerting System displayed on GDU 1550 with dedicated master warning and caution

  • Voice Alert System

  • Cabin temperature control (dual zone, with override capability)

  • Digital Flight time hourmeter

  • Flight Data Recorder

  • Garmin Flightstream FS510 Bluetooth avionics / handheld communication feature and wireless transfer of aviation databases from mobile devices

ADDITIONAL OPTIONS

  • 6 leather heated seats with adjustable backrests & folding armrests

  • RVSM Data Package

  • GWX 70 Digital Four Color Weather Radar with 10” Antenna

  • GSR 56 Iridium Satellite Phone (Talk, Text, plus Data Link International Weather)

  • Synthetic Vision Technology (SVT) on both PFDs

  • ChartView option for GDUs

  • GDL69A SXM Satellite Weather & Music

  • GTX 345R Mode S Transponder(#2) with ADS-B

  • AOA + Electronic Stability Protection (ESP) + Under speed Protection (USP) + Stick Shaker

NOTES

  • C+ Inspection Completed October 2022 with Exec Aero
